jQuery thumbnail scroller

jQuery thumbnail scroller

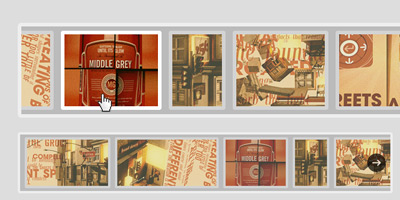

A cool jquery/css thumbnail scroller plugin inspired by the ones made in Flash. It works by cursor movement or next/previous buttons, has auto-scrolling feature and it’s simple to configure and style through css.

How to use it

In order to implement the plugin, you first need to insert inside the head tag of your document the jquery.min.js (load it from Google CDN), the jquery-ui-1.8.13.custom.min.js (a custom build jQuery UI for custom animation easing) and the jquery.thumbnailScroller.css which is the file where you can style your scroller(s).

<link href="jquery.thumbnailScroller.css" rel="stylesheet" type="text/css" />
<script src="http://ajax.googleapis.com/ajax/libs/jquery/1.5/jquery.min.js"></script>
<script src="jquery-ui-1.8.13.custom.min.js"></script>

Next you’ll need to insert the markup of the thumbnail scroller with your images and links inside the body tag. The structure of the markup is exactly the same for every scroller instance. You can use class names e.g. .jThumbnailScroller or you can add a unique id for using multiple, different type scrollers on the same page.

<div id="tS2" class="jThumbnailScroller">
    <div class="jTscrollerContainer">
        <div class="jTscroller">
            <a href="#"><img src="thumbs/img1.jpg" /></a>
            <a href="#"><img src="thumbs/img2.jpg" /></a>
            <a href="#"><img src="thumbs/img3.jpg" /></a>
            <a href="#"><img src="thumbs/img4.jpg" /></a>
            <a href="#"><img src="thumbs/img5.jpg" /></a>
        </div>
    </div>
    <a href="#" class="jTscrollerPrevButton"></a>
    <a href="#" class="jTscrollerNextButton"></a>
</div>

The final step is to include the actual thumbnail scroller plugin (jquery.thumbnailScroller.js) and the function that calls and configures the scroller(s) at the end of your document, just before the closing body tag. We also add jQuery.noConflict(); for using the plugin along with other libraries (e.g. prototype, scriptaculous etc.). thumbnailScroller function selector can be id, class, tag name etc. (in this example the id of the .jThumbnailScroller div in the markup above).

<script>
jQuery.noConflict();
(function($){
window.onload=function(){
    $("#tS2").thumbnailScroller({
        scrollerType:"hoverPrecise",
        scrollerOrientation:"horizontal",
        scrollSpeed:2,
        scrollEasing:"easeOutCirc",
        scrollEasingAmount:600,
        acceleration:4,
        scrollSpeed:800,
        noScrollCenterSpace:10,
        autoScrolling:0,
        autoScrollingSpeed:2000,
        autoScrollingEasing:"easeInOutQuad",
        autoScrollingDelay:500
    });
}
})(jQuery);
</script>
<script src="jquery.thumbnailScroller.js"></script>

You can configure each scroller by setting the parameters of the function call as options

Options parameters

scrollerType: String
Scroller type based on mouse interaction, values:
"hoverPrecise"
(default)
"hoverAccelerate"

"clickButtons"
scrollerOrientation: String
Scroller orientation, values:
"horizontal"
(default)
"vertical"
scrollEasing: String
Scroll easing type only for hoverPrecise type scrollers
See jquery UI easing for all available easing types
scrollEasingAmount: Integer
Scroll easing amount only for hoverPrecise and clickButtons type scrollers (0 for no easing). Example:
scrollEasingAmount:800
acceleration: Integer
Acceleration value only for hoverAccelerate type scrollers, default: 2
scrollSpeed: Integer
Scrolling speed only for clickButtons type scrollers, values: milliseconds, Example:
scrollSpeed:600
noScrollCenterSpace: Integer
Scroller null scrolling area only for hoverAccelerate type scrollers (0 being the absolute center of the scroller and the default value), values: pixels
autoScrolling: Integer
Initial auto-scrolling (0 equals no auto-scrolling and the default value), values: amount of auto-scrolling loops
autoScrollingSpeed: Integer
Initial auto-scrolling speed, values: milliseconds, Example:
autoScrollingSpeed:8000
autoScrollingEasing: String
Initial auto-scrolling easing type
See jquery UI easing for all available easing types
autoScrollingDelay: Integer
Initial auto-scrolling delay for each loop, values: milliseconds, Example:
autoScrollingDelay:2500

Multiple scrollers

To set multiple scrollers with different style and features on a single page, give them a unique id and add a function call for each one. For example:

<script>
(function($){
window.onload=function(){
    $("#tS2").thumbnailScroller({
        scrollerType:"clickButtons",
        scrollerOrientation:"horizontal",
        scrollSpeed:2,
        scrollEasing:"easeOutCirc",
        scrollEasingAmount:600,
        acceleration:4,
        scrollSpeed:800,
        noScrollCenterSpace:10,
        autoScrolling:0,
        autoScrollingSpeed:2000,
        autoScrollingEasing:"easeInOutQuad",
        autoScrollingDelay:500
    });
    $("#tS3").thumbnailScroller({
        scrollerType:"hoverPrecise",
        scrollerOrientation:"vertical",
        scrollSpeed:2,
        scrollEasing:"easeOutCirc",
        scrollEasingAmount:800,
        acceleration:4,
        scrollSpeed:800,
        noScrollCenterSpace:10,
        autoScrolling:0,
        autoScrollingSpeed:2000,
        autoScrollingEasing:"easeInOutQuad",
        autoScrollingDelay:500
    });
}
})(jQuery);
</script>

You can style all and each scroller separately in jquery.thumbnailScroller.css.

Scrolling long content

There’s a bug in jquery.min.js that resets to 0, an animate value greater than 9999 pixels. This bug will affect the scroller if content width or height is equal or greater than 10000 pixels, resulting a scrolling jerk. This annoying bug is going to be fixed on a future release of the library. Until then, we need to come up with a temporary solution and since editing jquery.min.js is not the best of practices, we’ll overwrite the jquery function containing the buggy code ;)
Insert the following code below the window load function:

<script>
/* function to fix the -10000 pixel limit of jquery.animate */
$.fx.prototype.cur = function(){
    if ( this.elem[this.prop] != null && (!this.elem.style || this.elem.style[this.prop] == null) ) {
      return this.elem[ this.prop ];
    }
    var r = parseFloat( jQuery.css( this.elem, this.prop ) );
    return typeof r == 'undefined' ? 0 : r;
}
</script>

Check the multiple scrollers demo to see all type of scrollers in action. The image thumbnails used in the demos are the work of Alex Varanese (http://www.alexvaranese.com).

Changelog

  • Oct 8, 2011
    • Changed anchors css display property to block and added float:left; (instead of display:inline-block;) to avoid extra whitespace between thumbnails
  • May 30, 2011
    • Plugin is greatly upgraded by the addition of new features and updated to be conflict-proof with other js libraries and scripts by changing css class names, thumbnailScroller function calling, jquery.thumbnailScroller.js and by adding jQuery.noConflict();
      Added 2 more scrolling types (3 total): an additional scrolling via mouse movement and a new scrolling type via next/previous buttons. The 3 types of scroller are: “hoverPrecise”, “hoverAccelerate” and “clickButtons”
      Added auto-scrolling feature
  • Feb 23, 2011
    • Automatically setting content width for horizontal scrollers is no longer calculated via javascript. Instead of using jQuery .each() or for statements, the width is now set by adding an additional div (.horWrapper) that wraps content and by setting the display of .container div to inline, thus expanding its width automatically (check the updated css file for details)
  • Jan 1, 2011
    • Modified the plugin to scroll images with different widths horizontally
  • Nov 29, 2010
    • Created a plugin out of the original script for easy implementation, configuration and multiple scrollers on a single page
      Minor code fixes and enhancements
  • Nov 26, 2010
  • Oct 18, 2010
    • Brad Mace added some code to increase the left and right margins of the thumbnail scroller in order to be easier to get the first and last thumbnails all the way on the screen, without having to move the mouse to the very edge. Script updated :) thanks Brad!

License

You are free to use, study, improve and modify this script wherever and however you like.
Creative Commons License All works are licensed under GNU General Public License, GNU Lesser General Public License or Creative Commons Attribution 3.0 Unported License.
